Suitable for product labels, packaging labels,customized gift labels and qr codes,etc., which can meet your different needs.
1. Three-in-one: film tearing,printing, and laminating
Less printing process, improve production efficiency, and reduce production costs.
2.Printing trolley anti-collision and material shortage alarm with dual protection system
It protects the nozzle, ensures the continuity and stability of the printing process,and extends the lifespan of the nozzle.
3.Imported HIWIN silent guide rails
Imported HIWIN linear ultra-quiet guide rails can ensure smooth operation of the printing trolley,high-precision and stable print output.
4.Color Management
Matched with ICC color correction, high color fidelity, which is gorgeous and bright. Product Photos
Equipped with 3 Epson I3200-U1 nozzles, using PrecisionCore technology, fast speed, premium quality, durable, long service life and is easy to clean. VSDT (Variable Ink Drop Technology) multi-grayscale output, smooth color transition and high saturation.

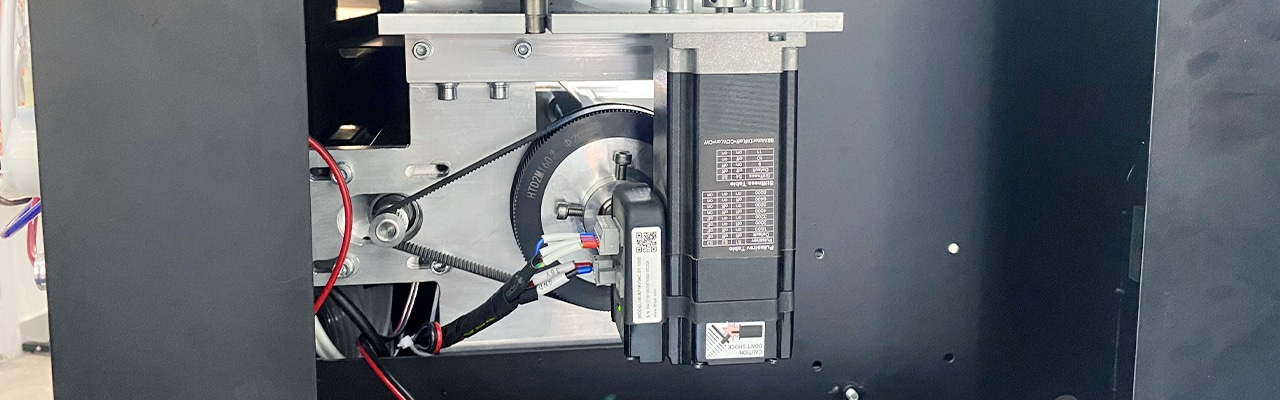

Precise stepping, low noise and low heat generation.Ensuring the stable operation and long-term use of the machine, can improve production efficiency and printing accuracy.
You can generate and print with one click without making spot color channels.
Equipped with 3 Epson I3200-U1 nozzles, using PrecisionCore technology, fast speed, premium quality, durable, long service life and is easy to clean. VSDT (Variable Ink Drop Technology) multi-grayscale output, smooth color transition and high saturation.
Precise stepping, low noise and low heat generation.Ensuring the stable operation and long-term use of the machine, can improve production efficiency and printing accuracy.
You can generate and print with one click without making spot color channels.

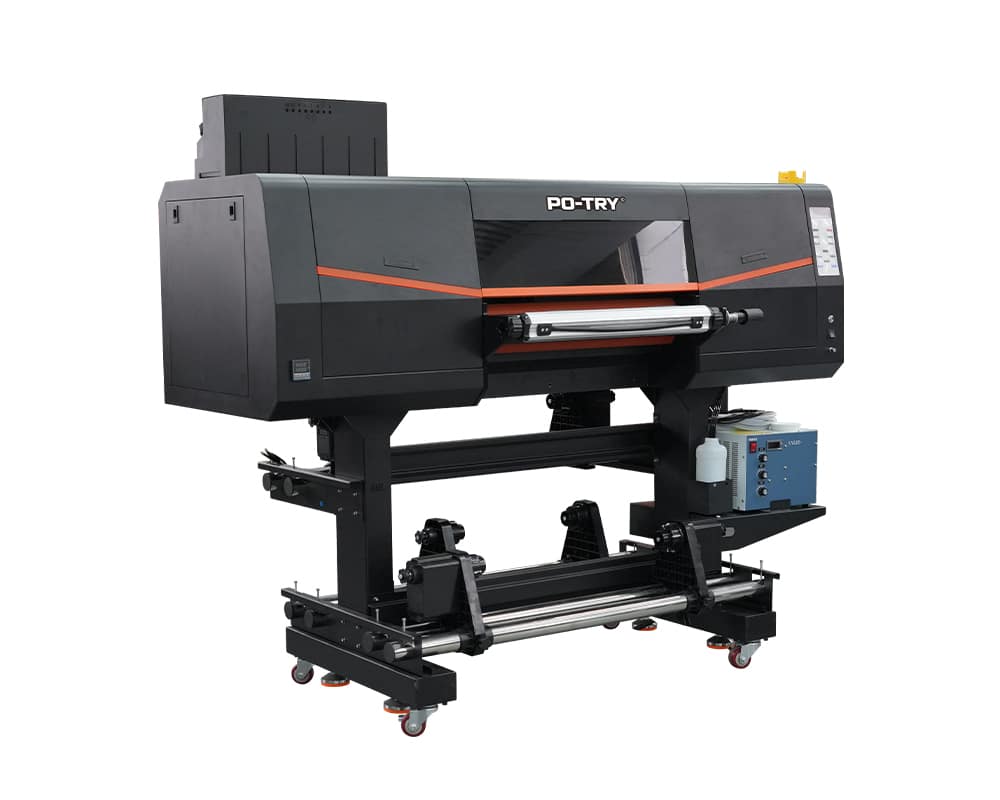

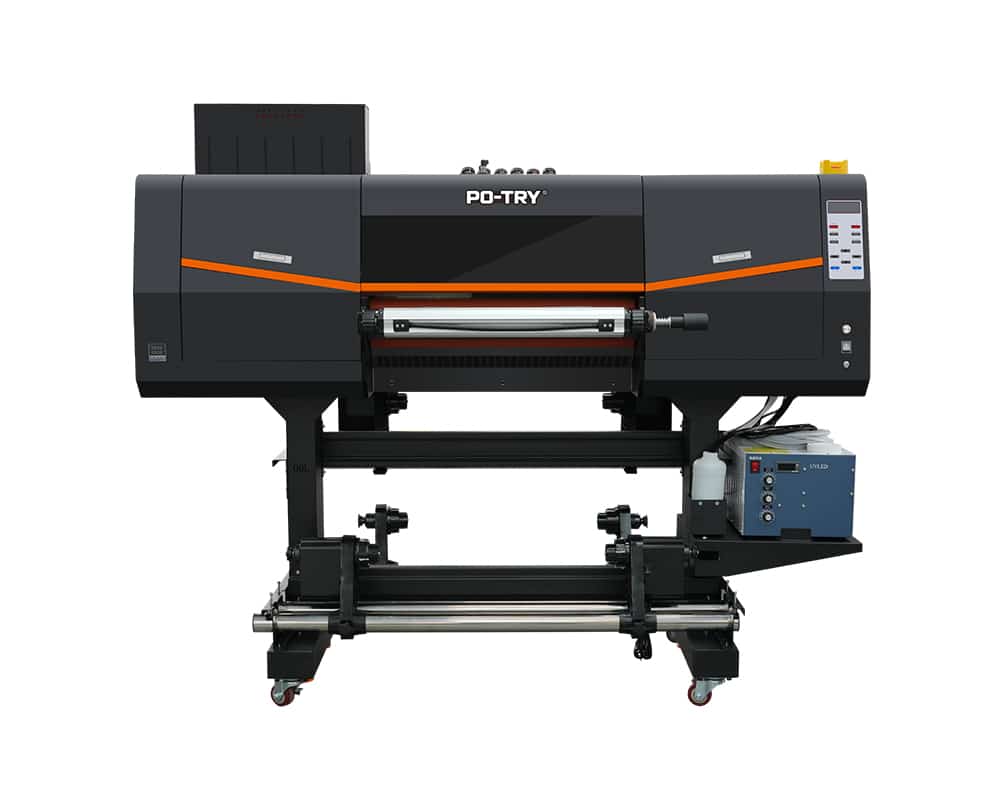

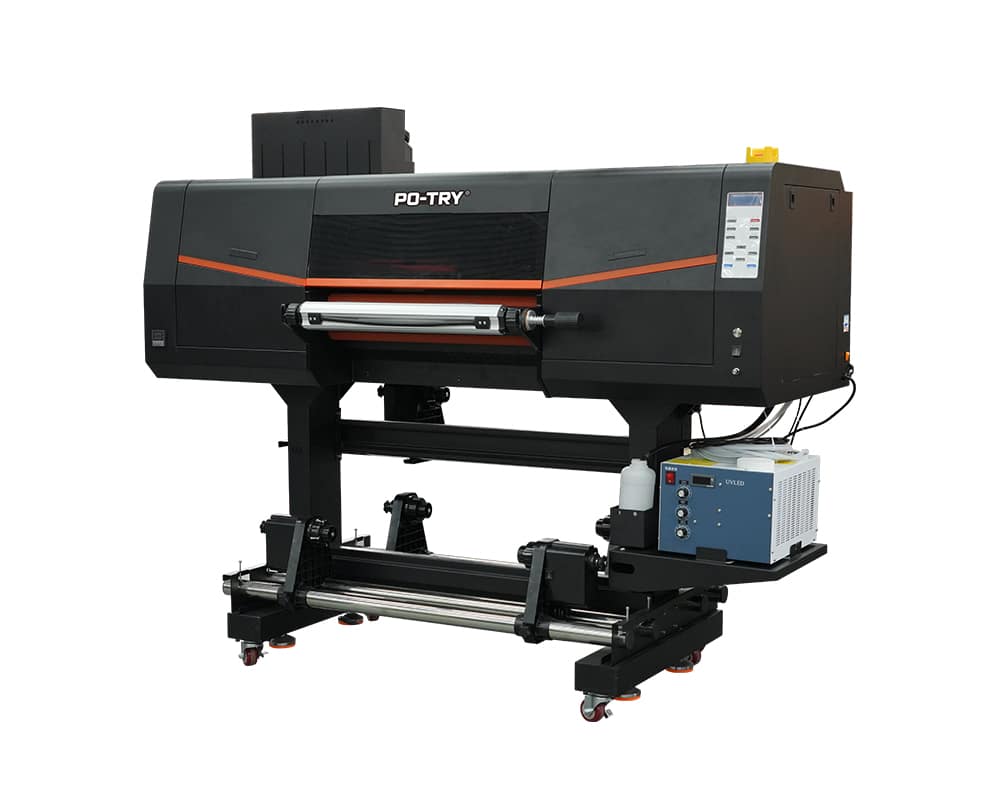

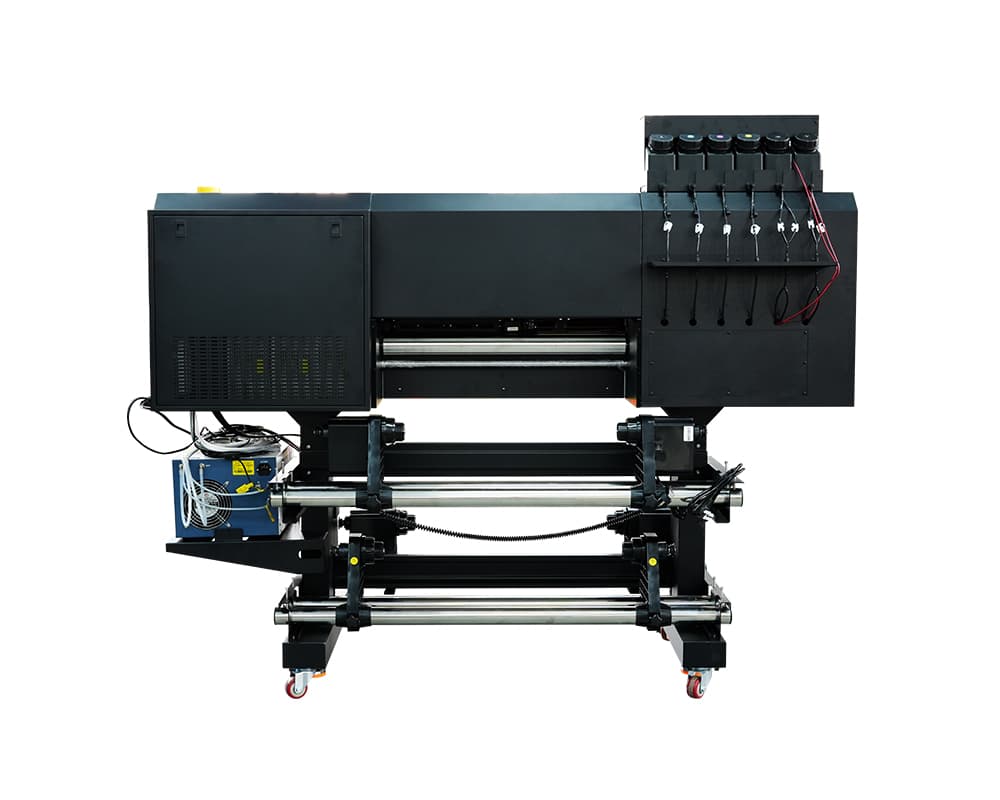

| Model | CL-0603UH |
| Printhead Type | Epson 13200-U1 |
| Printhead Quantity | 3 |
| Printing Speed | 6pass 720*1800DPI 7m2/h 8Pass 720*2400DPI 55m2/h |
| Color Mode | K CM Y+ W +Varnish |
| Printing Width | 590mm(Maximum film width:620mm) |
| Material Type | UV DTF A &B film, gold film, silver film |
| Curing System | UV LED lamp |
| UV LED Lamp Cooling System | Water-cooled |
| File Format | TIF(Mode: CMYK) |

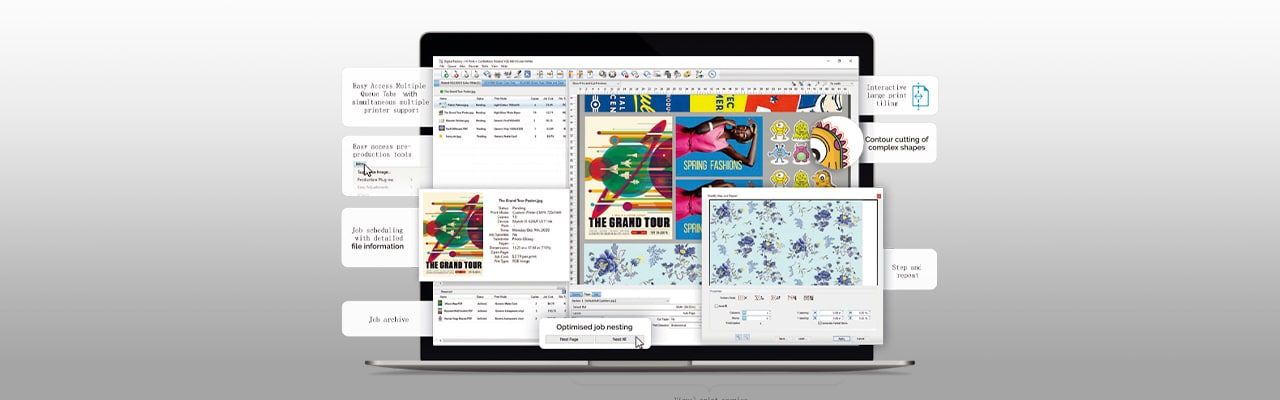

| RIP Software | Maintop 6.1(UV version)/ Photoptit(optional) |
| Power Consumption | UV lamp control case: 750W + Heat roller: 700W + Machine: 750W |
| Input Voltage | AC220V士10%,50/60Hz,AC110V(optional) |
| Working Condition | Temperature: 20-28°C,Humidity:45-65% |
| Printer Size | L1910mm*W900mm*H1610mm |
| Packing Size | L2450mm*W1010mm*H860mm |
| Net /Gross Weight | 240KG/313KG |
| PC Requirements | Win7 or above, 64 bit, CPU Processor i5 or above, 8G Storage, C disk with solid state hard drive 120G or above, Attached disk 1TB, Gigabit Ethernet port |
| Stabilizer | 3000W |
| Square number ofpower cords used by the machine | 4m2 |
Suitable for printing product labels, packaging labels, gift customized labels, etc.,supporting conventional, [...]
